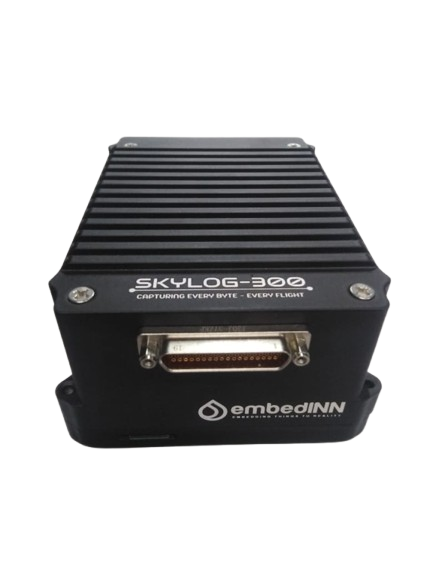

SkyLog-300 Ethernet Packet Recorder
The Ethernet Packet Recorder is a versatile and compact solution for capturing and logging Ethernet traffic. Featuring a 100BaseT interface, it supports real-time traffic storage to SD card at speeds of up to 10 Mbps. In addition to packet recording, it offers a passthrough mirror port with zero latency, enabling live traffic monitoring while storing data.
Key Features
- 100Mbps Ethernet Interface: Enables packet capture at line rate for flexible monitoring and logging.
- Real-Time Storage: Logs traffic up to 10 Mbps, optimized for packet recording tasks.
- Passthrough Mirror Port: Allows live traffic forwarding while recording packets.
- Optional Features: Timestamping and filtering can be enabled for detailed analysis and selective logging.
- Fail-Safe Design: Passive passthrough ensures live traffic continuity during power loss.
- Rugged Design: Operates reliably in harsh environments.
Specifications
Ethernet Ports:
Live Port: 100Base-T
Mirror Port: 100Base-T
Console Port: 1000Base-T
Performance:
Recording Speed: Up to 10 Mbps
Storage:
SD card (32 GB default)
Connectors:
G7 pin Micro-D
Dimensions:
5" × 3" × 1"
Power:
6 VDC
Temperature Range:
-40°C to +60°C
Optional Features
- Serial Com Logging: RS-232 interface with recording support at 115,200 bps
- Timestamping and filtering for detailed analysis
Applications
UAV Ready
Record video streams and telemetry data on the go
Mission Critical
Reliable logging for defense and aerospace applications
Fail-Safe Design
Ensure uninterrupted traffic with passive passthrough
Remote Operations
Reliable logging for maritime and exploration environments
Ordering Information
Part Number: skylog300-2elu-ooc
