HW / SW Design - Develop - Support
EmbedINN is established as a Technology Provider in the field of Embedded Systems Development, Hardware System Design, and Firmware Development. The main focus is on the Computing and Processing Systems, Inter connectivity and Peripheral Systems, GNSS Receiver, IoT and other Configurable Radio Systems. Our aim is to provide support to LBS, IoT, AI, Machine Learning and Big Data Market
We strive to produce high performance system using latest technologies
with very tight control on the quality of the products, covering
Industrial and Commercial guidelines of designing and development with
the team work of high level of trained manpower.
As our customers are ready for next challenges, we would like to equip
them with the best products that help them meeting their expectations
and goals.
Our quality standards apply also in terms of service, technical
expertise and advice.
Our dedicated employees are happy to assist you with
know-how
and
experience
in your
daily business
.
The Hardware system is the enabler for the all the development
in the knowledge front we see now a days. The AI/ML and other
cutting-edge technologies that we see going around us can only
work on a hardware platform
At embedINN we can design custom hardware from Scratch or a
reference design. Our design process is quite extensive and can
be tailored to the requirement, which consists of
– Requirement Analysis / Engineering
– System Design
– Schematic Entry
– PCB Design
– Manufacturing Assistance
– Board Bringup
– BSP Generation / Development
– Testing / Qualification
– Mass Production
Software Design Radios are an active area of development in
Satellite systems, Drone Systems and IoT (Space, Air and
Terrestrial). Because of the diverse nature of the
requirements, no solution could possibly fit for all
We, at embedINN are not only working in all areas, but want to
bridge the gap between them. Our flagship product, leoSDR is
capable of working in all environment. We can also make
customized products in the SDR domain for your requirements.
The HW/SDR system make a platform for the development of cutting-edge solutions. To make a complete use of the platform, the developer also need a robust Middleware/driver layer. We at embedINN can customize driver/OS for you or even write a custom driver layer for you.

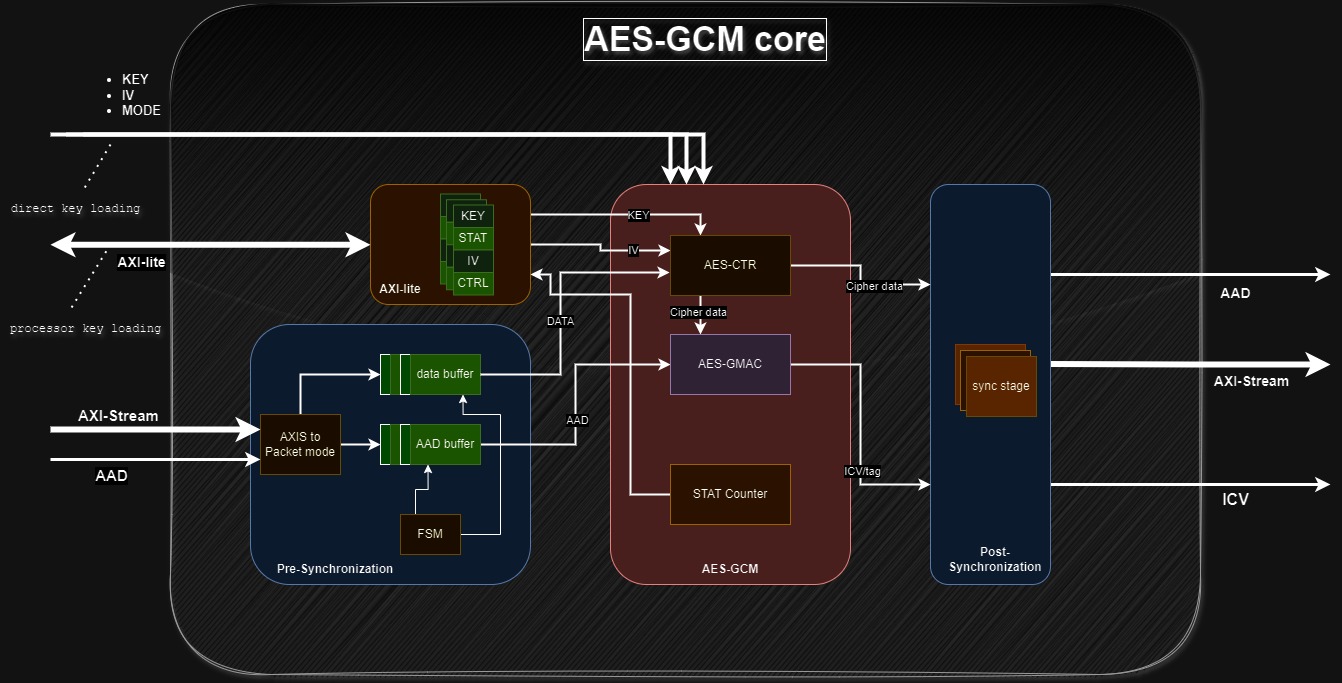

An FPGA-based IP core showcasing AES-GCM (Advanced Encryption Standard-Galois/Counter Mode) encryption. At its core, AES-GCM epitomizes the pinnacle of symmetric-key cryptography, seamlessly integrating two fundamental techniques: AES-CTR (Counter Mode) for encryption and AES-GHASH for authentication. Our IP core represents a sophisticated solution tailored for security-conscious applications, offering unparalleled protection against data breaches and unauthorized access. With its robust encryption and authentication capabilities, it serves as a cornerstone for safeguarding sensitive information in diverse computing environments
Versatility: AES-128, 192,256 Support
– Selectable Enc type GCTR/GCM Resource adaptability
NIST-Compliant Rigorous Testing
– Test vectors by NIST pub800-38D,
– FIPS-197, RandallTV-0511
Seamless Integration for Enhanced Security
– AXI Compliant interfaces for drop in module
– Direct packet mode
Key size flexibility for diverse needs
– supports in-flight key expansion per packet
Low latency for swift encryption
– Back to back packet support
– 29 cycles latency
High-speed data handling capabilities
– Up to 200MHz

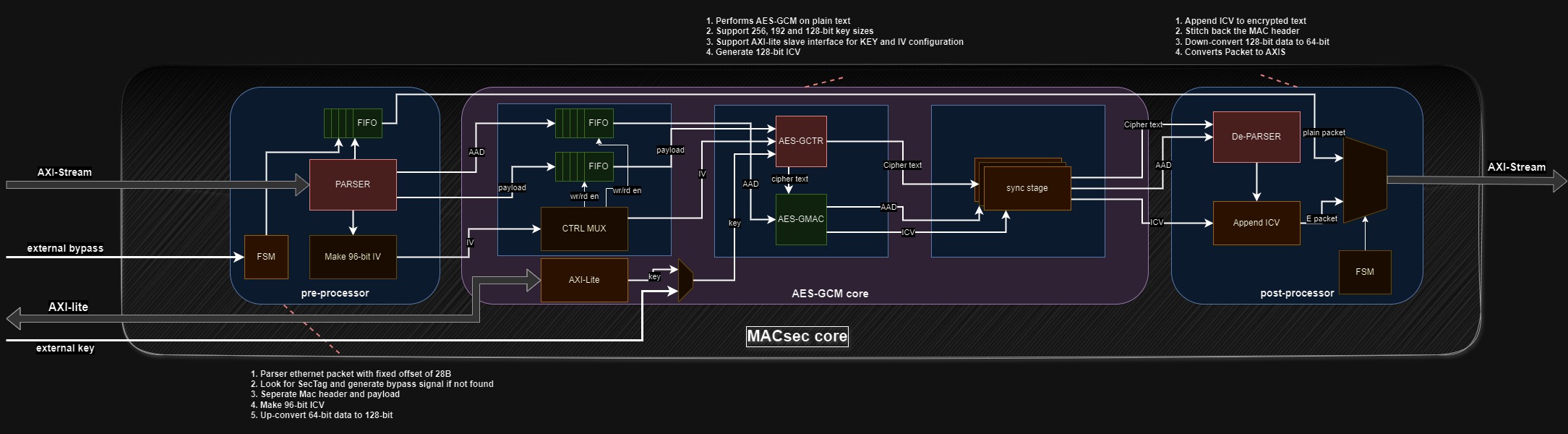

Our implementation of MACsec leverages the same robust AES-GCM core used for encrypt/decrypt. in AES-GCM, ensuring seamless integration and consistent security protocols. By extending the capabilities of our AES-GCM core to MACsec, we ensure that data transmitted over wired Ethernet networks remains confidential and untampered. This integration not only enhances network security but also simplifies the implementation process for our clients, offering a comprehensive solution for safeguarding their data at the data link layer.
Vendor Adaptable: Efficient FPGA utilization without
multipliers/DSP-Blocks Performance: MACsec supports up-to 10Gbps
Standard Compliance: MACsec offerings adhere to IEEE Std
802.1AE-2018, utilizing AES and GCM standards.
Compliance with Test Vectors: Our MACsec solution rigorously
adhere to the test vectors Outlined in Annex C of IEEE Std
802.1AE-2018.

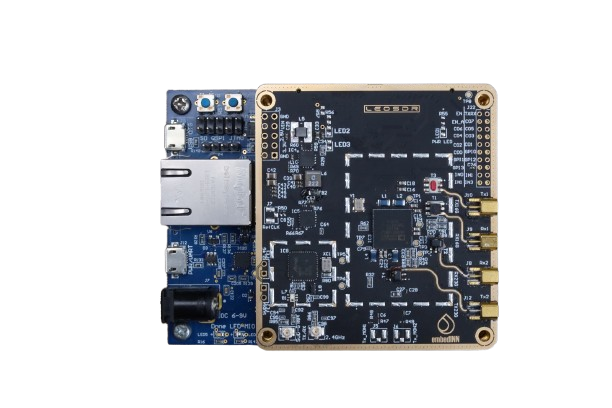

Low Earth Orbit Satellite Software Defined Radio
leoSDR is a mezzanine card for zynqBC having a AD9361 front-end
that works from 70MHz – 6GHz. Having a zynq-7020 available for
processig and AD9361 as front-end, this low cost radio is capable
of doing all kind of transmission, a satellite based receiver is
required to do. Because of its capabilities, it is also well
suited for Teristerial as well as air-bourne applications.

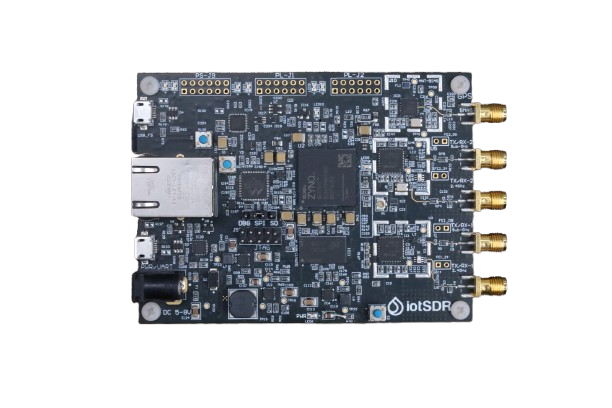

A versatile dev board with everything you need to design custom IoT
protocols
& gateways
iotSDR provides a platform that allows SDR developers and
enthusiasts to design innovative algorithms and cutting-edge
products. While wide-band SDRs are more versatile, narrow-band
transceivers perform better for many IoT-related applications.
Accordingly, iotSDR hosts two narrow-band Microchip AT86RF215
transceivers that provide their own base-band cores and have the
ability to handle their own I/Q signal streaming. The result is an
extremely powerful tool for anyone who is looking to simplify the
task of developing, testing, and deploying high-complexity
frameworks

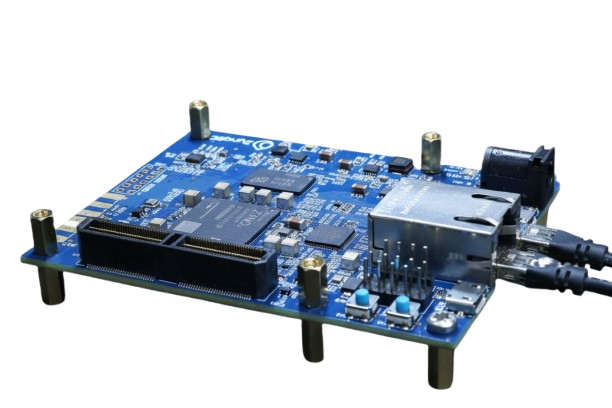

ZYNQ based Processing system with multiple paripherals zynqBC is a
powerful processing system with a small form factor, that can become
a quick development platform for new products. It has a mezzanine
connector for extending the capabilities. It has a 9DoF IMU, u-blox
GPS, temp and pressure sensor on-board. It is suitable for
applications requiring
– Performance through dual core ARMcortex
– Configurability through FPGA
– Versatility through mezzanine cards
– Other Applications includes, MMI, sensor integration, sensor
network, secure network nodes, video and data processing, training
of programming SoCs, Industrial controllers, etc.
